Our Manufacturing Plants
Atsugi Plant's Vacuum Heat Treatment Line / Coating Line
The Atsugi Plant offers commissioned processing of its ONEX fine coating services using the PVD method. We welcome you to try out our proprietary thin membrane technologies for everything from industrial tools, jigs and components to other decorative parts.
Vacuum Heat Treatment Advantages
- Non-polluting, next generation form of heat treatment
- Achieves superior surface structure
- Lengthens the service life of parts
- Less strain during heat treatment
- Reduces grinding man hours
Vacuum Heat Treatment Line Processing Facilities
| Equipment No. | Name | Manufacturer | Usable Inner Dimensions of Furnace | Maximum Part Weight for Treatment | Maximum Operating Temperature |
|---|---|---|---|---|---|
| PV-6 | Vacuum quenching furnace | Chugai Ro | W460×L610×H440 | 150kg | 1,300℃ |
| PV-7 | Vacuum quenching furnace | Nakanihon Ro Kogyo | W610×L920×H610 | 450kg | 1,300℃ |
| PV-8 | Vacuum tempering furnace | Chugai Ro | W610×L920×H610 | 450kg | 750℃ |
| PV-9 | Vacuum tempering furnace | Chugai Ro | W610×L920×H610 | 450kg | 750℃ |
| PV-11 | One chamber gas pressure vacuum heat treatment furnace | Chugai Ro | W610×L920×H610 | 450kg | 1,300℃ |
| BV-1 | Allcase hot air circulating electric furnace | Shinei Netsu Kogyo | W500×L500×H500 | 200kg | 650℃ |
| BV-2 | Hot air electric furnace | Fuji Kakohki | W550×L600×H500 | 200kg | 500℃ |
| PV-12 | Rapid gas cooling vacuum quenching furnace | Daido Steel | W500×L750×H400 | 240kg | 1,300℃ |
| PT-20 | Pit-type hot air circulating electric furnace | Dengen Yakin | 640φ×750H | 200kg | 600℃ |
| PT-21 | Pit-type hot air circulating electric furnace | Dengen Yakin | 640φ×750H | 200kg | 600℃ |
| H-1 | Horizontal atmosphere furnace (hydrogen furnace) | Mochizuki Nekki Kogyo | 206φ×1,500L | 950℃ |
Quality Control
We have established a complete quality assurance framework fully equipped with Micro Vickers hardness testers, membrane thickness testers, scratch testers, pin-disk abrasion testers, Nishihara sliding abrasion testers and scanning electron microscopes.
Coating Line Processing Facilities
| Equipment No. | Standard deposition substance | Manufacturer | Usable Inner Dimensions of Furnace | Maximum Part Weight for Treatment | Maximum Operating Temperature |
|---|---|---|---|---|---|
| IPB-1 | TiN TiCN | ULVAC | 450φ×600L | 150kg | 600℃ |
| IPB-2 | TiN TiCN | ULVAC | 450φ×600L | 150kg | 600℃ |
| IPB-3 | TiN TiCN CrN | Nachi-Fujikoshi Corp. | 180φ×320L×8Axes | 150kg | 600℃ |
| AIP | TiN TiALN TiCN CrN | Kobe Steel | 500φ×550L | 150kg | 900℃ |
Vacuum heat treatment furnace
AIP machine
HCD machine

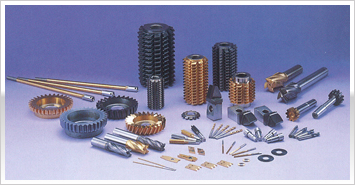

PVD-treated part
